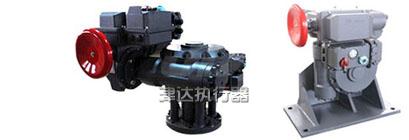

Bus type electric actuator
　　Only need to use one double core cable, JD series bus type electric actuator can send all input and output data, parameters, diagnostic data and device status information and other related information of field equipment. BCM-K/PI bus control module integrated Profibus-DP protocol interface of passive station, the output control of field equipment and read function of device status and diagnostic information can be realized by PLC with Profibus-DP master station protocol interface through the Profibus-DP network.

Main Technical Parameters

Voltage of Power Supply	Domestic Standard: 220V 50Hz±1Hz～380V 50Hz±1Hz 1Hz
Voltage of Power Supply	Exported product can be customized: 110V～480V (50Hz～60Hz)
Output torque	80～13600Nm
Output pushing force	6400～64000N
Input signal	Profibus-DP
Topological structure of website	Linear (bus) structure, the tree structure can be realized
Control accuracy	Basic error:±1%; Return difference≤1%; Dead area≤1%
Adjustable range of working travel	"zero point"±10%; "travel"35%～110%
Transmission media	Shielded twisted pair,copper cable
Quantity of stations	With repeater, it can be expanded to 126
Protection class	IP55～IP68

External wiring

The shielded cable shall be adopted for input and output signals. One cable cannot be used for power cord and signal line together

Power cable	S=1.5mm2～4mm2
Bus cable	6XV1830-0EH10
Cable entry	PF3/4″

Environmental Conditions

Environmental temperature	Without space heater -10℃～70℃
Environmental temperature	With space heater -35℃～60℃
Relative Humidity	≤95%
Environmental gas	No corrosive gas
Mechanical vibration	XY210G. 0.2～34Hz. 30minutes

※ If you have special requirements for travel time, connection size, control mode, environment temperature and others, our company can produce customized product specially.
