Cảm biến Toyo SOT-NP801H4-Toyo Vietnam

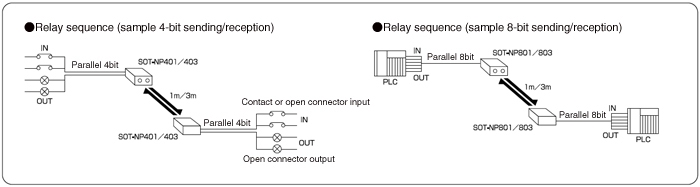

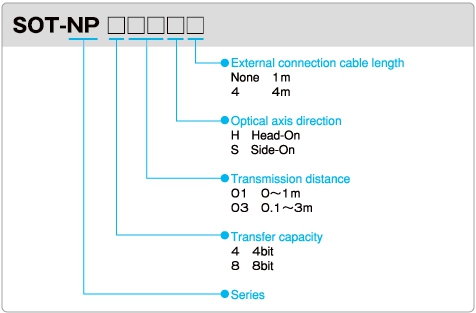

Model

SOT-NP401H/S□

SOT-NP403H/S□

SOT-NP801H/S□

SOT-NP803H/S□

Rated power voltage

DC12/24V Ripple 100 mVp-p or less

Power voltage used

DC10 – 30V Ripple 100 mVp-p or less

Consumable current

60mA MAX

Transmission distance

0 – 1m

0.1 – 3m

0 – 1m

0.1 – 3m

Direction angle

30°

Transmitting points

Input 4-bit/Output 4-bit

Transmission method

Half-duplex 2-way and 1-way direction

Detecting method

Bit reverse any time comparison method

Transmitting time

15ms MAX (M/S mode) 20ms MAX (X mode)

Projecting element

Short-wave-length infrared LED

Receiving element

Photo transistor

Modulation method

Pulse modulation 45 KHz

Input date points

4 points

8 points

input model Photo-coupler insulation type (Sink input)
Input signal Contact-point or Open collector
Input voltage DC10 – 30V However, input voltage is the line-to-line voltage
between EXT+V and IN
Input current 4±0.5mA (in DC 24V) However, the residual voltage when turned On is below than 2V. The leakage current when turned Off is below than 0.5mA.

Output date points

4 points

8 points

Output model Non-insulation model Open collector output by NPN transistor (Sink Output)
Load voltage DC4.5 – 30V
Load current 100mA per point The residual voltage when output turned On Should be below than 1.5V and total load current Below than 500mA

Indicators

POW display: Lights up (red) when power is on
CTL/TCD display: Lights up (red) when CTL input is on/lighted (green) when TCD input is on
Lighted
DT/RCV display: Lights up (red) during successful data reception/lighted (green) during stable optical reception
IN display: Lights up (red) when data input is on
OUT display: Lights up (green) when data output is on
When the RCV display (green) is lighted , the DT display (red) will also be lighted .

Connection

With attached 1-m cable 18C × 0.14mm² (AWG26)
With attached 1-m cable 26C × 0.14mm²(AWG26)

Ambient operating temperature

-20 – +50°C No freezing temperatures allowed.

Ambient operating humidity

40 – 85% RH No condensation allowed.

Ambient operating illumination

4,000lx or less for incandescent and fluorescent lamps
No externally disturbed light shall directly enter the receiver.

Vibration resistance

10 to 55Hz in frequency, 1.5mm in complex amplitude and 5minutes for sweep
20 cycles in each of X, Y and Z directions

Shock resistance

500m/s2, 20 cycles in each of X, Y and Z directions

Enclosure rating

IP66

Outside dimensions

60mm (W) × 50mm (D) × 22mm (H)
