Model GY Series

GYcAT Probe

Standard analogue output

GYcAT Probe

Thanks to the Surface Mount Technology, the entire signal processing electronics of GYcAT series is integrated into a transducer head.
You can get a voltage or current analog signal proportional to a magnet position only by applying a 24V DC power supply directly to the transducer.
GYcAT series have alarm output and is equipped with noise cancellation functions.

Specifications

Non-linearity ≦±0.05%FS TYP
Resolution ≦0.01%FS
Repeatability ≦0.01%FS
Temp. drift ≦±40ppmFS/°C
Voltage output 0-10V or 10-0V
(output current:Max.5mA, load:Min.2kΩ)
Current output 4-20m or 20-4mA
(load:Max.500Ω)
Alarm output Open collector 30V 0.1A
Power supply +24(±2)VDC (100mA)
Sampling freq. Std 1kHz(up to stroke 1000mm)
Max. Pressure 35MPa(probe rod)
Operating temp. -20°C-+80°C
Storage temp. -40°C-+80°C
Vibration 6G(or 40Hz 2mmPP)
Shock 50G(2msec)
IP grade IP67(10kPa, 30min)

・The above mentioned accuracy applies to sensors with an
effective stroke of 300 mm or more.

Model No.

①Effective stroke
  15-3500mm

②Thread dead zone
  S:50mm(STD)
  □:□mm(option)(specified by customers)

③Tip dead zone
  S:70mm/90mm/100mm(STD)
  ・S (STD length) depends on the selected magnet or float in ⑤.

tip DZ magnet float
70mm M2P,MG0,M11 F25N,F28N
90mm F28S,F30S
100mm T142,T162 F40S,F42S,F50S

□:□mm(option)(specified by customers)

④Thread/Rod diameter
  M :M24xP1.0, rod Φ10(STD)
  N :M18xP1.5, rod Φ10
  U :3/4-16UNF-3A, rod Φ10
  M8 :M24xP1.0, rod Φ8
  N8 :M18xP1.5, rod Φ8
  U8 :3/4-16UNF-3A, rod Φ8
  M14:M24xP1.0, rod Φ13.8

⑤Associated magnet or float

magnet float
M2P :No.2P (STD)
MG0 :No.Φ
M11 :No.11
T142 :No.T14-M2
T162 :No.T16-M2
MG□ :other magnet
F28S :Φ28 SS316
F30S :Φ30 SS316L
F42S :Φ42.5 SS316
F40S :Φ40 SS316(B)
F54S :Φ54 SS304
F50S :Φ50 SS316
F28N :RF-A6 plastic
F25N :RF-A10 plastic
FL□ :other float

⑥Cable connection
  CN:connector(STD)
  △G□F:pigtail / cable end : free
  △G□A:pigtail / cable end : with connector for relay
      (□:cable length(m))
      (△:cable type
        S:standard, H:high temp. cable, R:robot cable)
  <Water proof option>
  WPCN:submersible connector type
  WP3G□F:pigtail / cable end : free
  WP3G□A:pigtail / cable end : with connector for relay
      (□:cable length(m))
  ・P73 shows the detailed information

⑦Position output
  AD:0-10V(When magnet moves toward tip, output increase)
  AR:10-0V(When magnet moves toward tip, output decrease)
  BD:4-20mA(When magnet moves toward tip, output increase)
  BR:20-4mA(When magnet moves toward tip, output decrease)
  CD□□:bipolar output(-□V-+□V)
      (for example CD10:-10V-+10V)
  CR□□:bipolar output(+□V--□V)
      (for example CR05:+5V--5V)

⑧Option (see page 72-74)
  blank:without option
  12S:Power supply +12VDC (total L ≦630mm)
  SRT:SRT option
  H0:probe rod 100°C

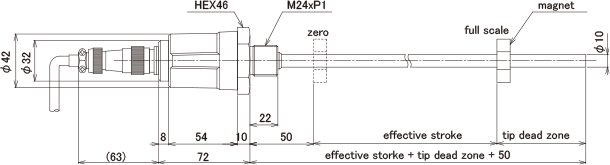

Dimensions

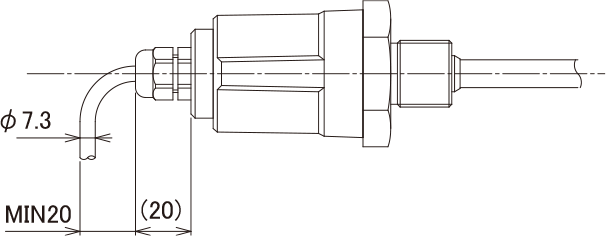

probe ■Pigtail type(Option)
