Đầu dò cảm biến GYSE-A Probe-Santest Vietnam

Hãng SX:
Santest
Xuất xứ:
Japan
Di động:
0914 537 669
Email:
Sale05@tmpvietnam.com
Chia sẻ:
Số lượng
Yêu cầu gọi lại
số điện thoại

Specifications

Non-linearity ≦±0.025%FS TYP
Resolution 16bit (1/65536)
Repeatability ≦±0.001%FS (Min. ±3μm)
Temp. drift Temp. drift ≦±20ppmFS/°C
Position (STD) 0-10V (output current : Max.5mA, load : Min.2kΩ)
or 4-20mA (load : Max.500Ω)
Velocity (Option) ±10V (output current : Max.5mA, load : Min.2kΩ)
or 4-20mA (load : Max.500Ω)
Alarm Open drain 50V 0.1A (for magnet missing)
Power supply +24(±2)VDC (70mA)
Sampling freq. Std 1kHz (up to stroke 1000mm)
Max. Pressure 35MPa (probe rod)
Operating temp. -20°C-+75°C
Storage temp. -40°C-+75°C
Vibration 15G (20-100Hz)
Shock 100G (2msec)
IP grade IP67

・The above mentioned accuracy applies to sensors with an effective stroke of 300 mm or more.

Model No.

①Effective stroke
  15-7500mm

②Thread dead zone
  S:50mm(STD)
  □:□mm(option)(specified by customers)

③Tip dead zone
  S:70mm/90mm/100mm(STD)
  ・S (STD length) depends on the selected magnet or float in ⑤.

tip DZ magnet float
70mm M2PN,M0SM,M0LM,M3,M11N F25N,F28N
90mm F28S,F30S
100mm T144,T163 F40S,F42S,F50S


□:□mm(option)(specified by customers)

④Thread/Rod diameter
  M :M24xP1.0, rod Φ10(STD)
  N :M18xP1.5, rod Φ10
  U :3/4-16UNF-3A, rod Φ10
  M8 :M24xP1.0, rod Φ8
  N8 :M18xP1.5, rod Φ8
  U8 :3/4-16UNF-3A, rod Φ8
  M14:M24xP1.0, rod Φ13.8
  ZZ:EF (flexible element) only (without outer housing)

⑤Associated magnet or float

magnet float
M2PN :No.2PN (STD)
M0SM :No.ΦSPM
M0LM :No.ΦLPM
M3 :No.3
M11N :No.11N
T144 :No.T14-M4
T163 :No.T16-M3
MG□ :other magnet
F28S :Φ28 SS316
F30S :Φ30 SS316L
F40S :Φ40 SS316(B)
F42S :Φ42.5 SS316
F50S :Φ50 SS316
F54S :Φ54 SS304
F25N :RF-A10 plastic
F28N :RF-A6 plastic
FL□ :other float

⑥Cable connection
  CN:connector(STD)
  △G□F:pigtail / cable end : free
  △G□A:pigtail / cable end : with connector for relay
    (□:cable length(m))
    (△:cable type
       S:standard, H:high temp. cable, R:robot cable)

⑦Position output(OUT1)
  AD:0-10V(When magnet moves toward tip, output increase)
  AR:10-0V(When magnet moves toward tip, output decrease)
  BD:4-20mA(When magnet moves toward tip, output increase)
  BR:20-4mA(When magnet moves toward tip, output decrease)
  CD□□:bipolar output(-□V-+□V)
      (for example CD10:-10V-+10V)
  CR□□:bipolar output(+□V--□V)
      (for example CR05:+5V--5V)
  V Z/F:option (specified voltage)
      (for example V1/5:1-5V, V9.5/0.5:9.5-0.5V)
  I Z/F:option (specified current)
      (for example I5.2/20:5.2-20mA, I18/5:18-5mA)
  【Z=output at zero position, F=output at full position】

⑧Option : Analogue output(OUT2)
  ・N:without option(STD)
  ・position output:select from ⑦
  ・Velocity output(Note1)
    VA[  ]:±10V
    WB[  ]:4-20mA
    [  ]:max. velocity(1.00-999 mm/s)

  (Note1)
  VA : When magnet stops, output is 0V.
  When moving toward probe tip, +10V.
  WB : When magnet stops, output is 4mA.
  When moving in any direction, 20mA.

⑨Option (see page 72-74)
  blank:without option
  SRT:SRT option
  H0:probe rod 100°C
  EF:flexible element
  Without EF option, GYSE probe element is detachable though the rod parts is stiff. With EF option, as to accuracy or other specs, please consult factory.

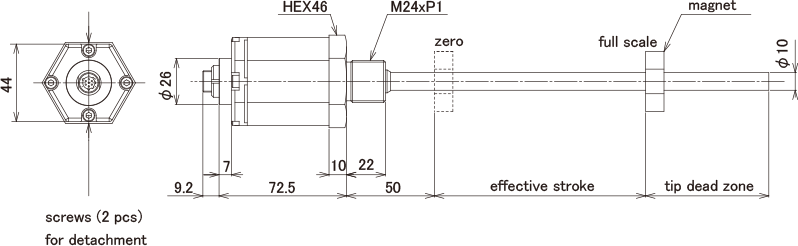

Dimensions

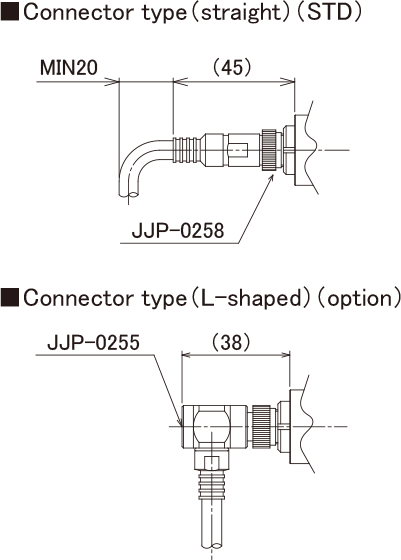

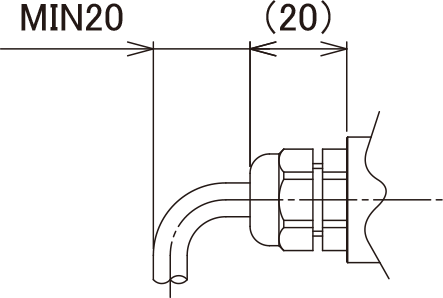

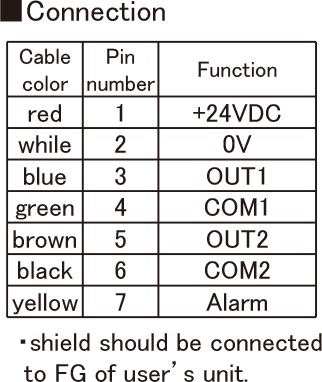

Probe Connection Connector type ■Pigtail type
Zoom Zoom Zoom Zoom

・materials ; Probe head : Al alloy, Probe rod : SS304
・magnet (float) ; Select one from group GG on page 75 or from floats on page 76.
・The tip dead zone length depends on the selected magnet or float.
・connector ; straight or L-sharped (housing parts : BS with Ni plating)
・Connector-cable assembly is done at SANTEST, since special tool is required.
・cable length ; Max.10m (0-10V output), Max.100m (4-20mA)
