Specifications

The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.

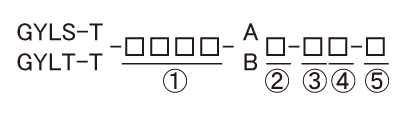

Model No.

(1):Effective stroke
15mm-3000mm

(2):Direction of output
(toward probe tip)
D:output data increase
R:output data decrease

(3):Thread
M:M24xP1.0 (Standard)
N:M18xP1.5
U:3/4-16UNF

(4):Sensor rod diameter
blank:Φ10 (Standard)
8:Φ8
14:Φ13.8

(5):Cable connection
CN:Connector
Connector:straight or angle type
Connector:only counter connector is supplied. In case cable needed,
specify cable length.

Dimensions

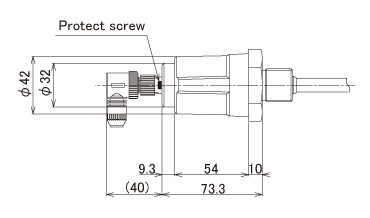

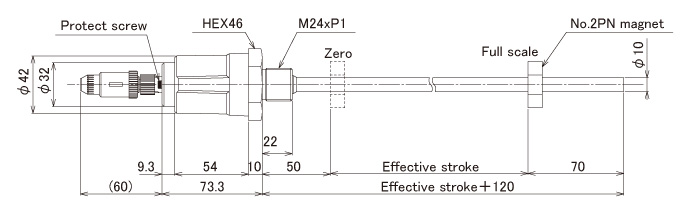

Straight connector type (Standard)		L type connector (Option)

Material probe head:Al diecast, probe rod:SS304
Standard magnet:No.2PN. Other magnets are available from Magnet Grouping [GG].
The tip dead zone length (70mm) depends on the magnet or float type.
The length of the cable should be less than 10m in case of using the voltage output type
and 100m in case of using the current output type.
Connector:Omron XS2C-D4S1 (straight type) or D4S2 (L type) (Material:PBT plastic)
Applied cable diameter:Φ5-Φ6, Wire size:0.18-0.75mm2
When you adjust output, you need a flathead screwdriver (width:1.6mm).
When you dismount protect screw, you need a hex wrench (2.5mm).
Adjustable scope:±3%FS
This series connector type only.

Connection
1 DC24V
2 0V
3 Output (Current or Voltage)
4 COM
*Shield should be connected with 0V
at user side.
*0V and COM are connected in the head.
