Model GY Series

GYcAT4

Analogue output (replacement model for GYLT, GYLS)

Replacement model for GYLS (0-10V output), GYLT(4-20mA output).
Linearity : ≦±0.05%FS.
current consmption is 100mA.

Specifications

Non-linearity	≦±0.05%FS TYP
Resolution	≦0.01%FS
Repeatability	≦±0.01%FS
Temp. drift	≦±40ppmFS/°C
Voltage output	0-10V or 10-0V (output current:Max.5mA, load:Min.2kΩ)
Current output	4-20m or 20-4mA (load:Max.500Ω)
Alarm output	not available
Power supply	+24(±2)VDC (100mA)
Sampling freq.	Std 1kHz (up to stroke 1000mm)
Msx. Pressure	35MPa (probe rod)
Operating temp.	-20°C-+80°C
Storage temp.	-40°C-+80°C
Vibration	6G (or 40Hz 2mmPP)
Shock	50G (2msec)
IP grade	IP67 (10kPa, 30min)

・The above mentioned accuracy applies to sensors with an
effective stroke of 300 mm or more.

Model No.

①Effective stroke
　　15-3500mm

②Thread dead zone
　　S:50mm (STD)
　　□:□mm (option) (specified by customers)

③Tip dead zone
　　S:70mm/90mm/100mm (STD)
・S (STD length) depends on the selected magnet or float in ⑤.

tip DZ	magnet	float
70mm	M2P,M2PN,MG0,M0SM,M0LM,M11,M11N,M3	F25N,F28N
90mm		F28S,F30S
100mm	T142(144), T162(163)	F40S, F42S, F50S

□:□mm(option)(specified by customers)

④Thread/Rod diameter
　　M :M24xP1.0, rod Φ10 (STD)
　　N :M18xP1.5, rod Φ10
　　U :3/4-16UNF-3A, rod Φ10
　　M8 :M24xP1.0, rod Φ8
　　N8 :M18xP1.5, rod Φ8
　　U8 :3/4-16UNF-3A, rod Φ8
　　M14:M24xP1.0, rod Φ13.8

⑤Associated magnet or float

＜magnet＞	＜float＞
M2P:No.2P (STD) M2PN:No.2PN MG0:No.Φ M0SM:No.ΦSPM M0LM:No.ΦLPM M3:No.3 M11:No.11 M11N:No.11N T142:No.T14-M2 T144:No.T14-M4 T162:No.T16-M2 T163:No.T16-M3 MG□:other magnet	F28S:Φ28 SS316 F30S:Φ30 SS316L F40S:Φ40 SS316(B) F42S:Φ42.5 SS316 F50S:Φ50 SS316 F54S:Φ54 SS304 F25N:RF-A10 plastic F28N:RF-A6 plastic FL□:other float

⑥Cable connection
　　CN:connector(STD)
　　G□F:pigtail / cable end : free
　　G□A:pigtail / cable end : with connector for relay
　　　　(□:cable length (m))

⑦Position output
　　AD:0-10V (When magnet moves toward tip, output increase)
　　AR:10-0V (When magnet moves toward tip, output decrease)
　　BD:4-20mA (When magnet moves toward tip, output increase)
　　BR:20-4mA (When magnet moves toward tip, output decrease)
　　CD□□:bipolar output (-□V-+□V)
　　　　　　　　(for example CD10:-10V-+10V)
　　CR□□:bipolar output(+□V--□V)
　　　　　　　　(for example CR05:+5V--5V)

⑧Option (see page 72-74)
　　blank:without option
　　H0:probe rod 100°C

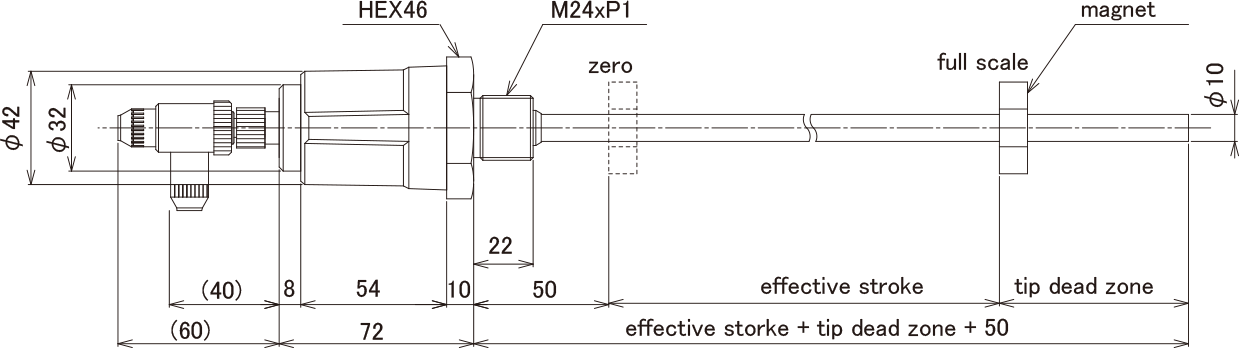

Dimensions

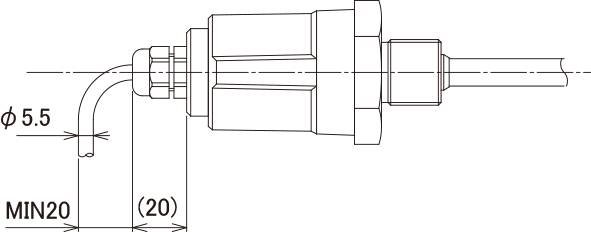

probe		Pigtail type (Option)

・Material probe head:Al diecast, probe rod:SS304
・Standard magne:No.2PN. Other magnets are available from Magnet Grouping「B」(P.75).
・The tip dead zone length depends on the selected magnet or float type.
・The length of the cable should be less than 10m in case of using the voltage output type
and 100m in case of using the current output type.

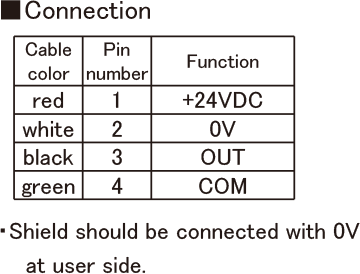

・Connector:Omron XS2C-D4S1 (straight type) or D4S2 (L type) (Material:PBT plastic)
・Applied cable diameter:Φ5-Φ6
・Wire size:0.18-0.75mm2
